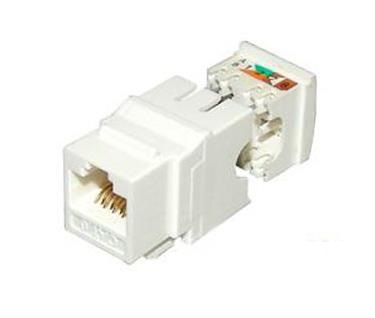

Keystone Jack

KJ-6101

 Product model:

UTP Cat.6 Keystone Jack 180 degree, tooless

Keystone Jack

KJ-6101 Main Description Of The Product:

1.  180°Tooless unshielded KJ. The products are used in the equipment rooms & work
the area as communication connectors of the intelligent buildings.
2.  The structure of the Keystone Jack is compact and tooless. This design is based on
contemporaneity aesthetics. The original dust free tooless punching hats can make your
work more easy and fast, and it can also prevent the cable to break off from
the IDC ports.
3.  According to SIO/IEC 11801:2002 Class E & ANSI/TIA/EIA/568-B.2-1 CAT.6 standard.
4.  According with T568A & T568B labels are adhibited on the both sides of the product
to give an exact guide when an engineer punches the cables.
5.  Connecting: RJ45 port for STP patch cord and the IDC port for STP horizontal
cabling.
6.  In accordance with RoHS Detective.
7.  Fitting for Cat.6 cabling systems can also be used on Cat.5 and Cat.5e cabling
systems.

Keystone Jack KJ-6101 Technique Characteristics:
1.  Housing and other plastic parts material: PC UL94V-0
2.  8 Pin of the RJ45 jack：Phosphor bronze with golden plated 3U、6U、15U、30U、50U
at option. Insertion dependability: 750 times.
3.  IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG Cables.
Punching dependability: 250 times.
4.  Punching tools: tooless type
5.  Testing condition of transmitting capability: 250HMz

Keystone Jack KJ-6101 ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SKJ-7A6101	UTP Cat.6 Keystone Jack 180 degree, tooless	500 PCS	40*29*53 cm	7.8 kg
