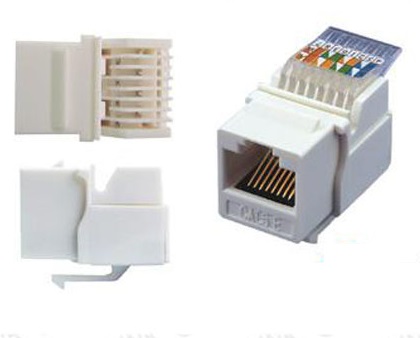

Keystone Jack KJ-5301 Product model:

Keystone Jack  KJ-5301  Main Description Of The Product：

•  Keystone Jack, Cat.5e Class E, UTP type, fit for connecting application of communication ports in working area.
•  A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack, which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.
•  According to the standard of ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA 568-B.2-1 CAT.5e, T568A punching sequence and T568B punching sequence are both compatible.
•  Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.5e cables.
•  Fitting for the Cat.5e general cable distribution system. Compatible for Cat.5 systems.

Keystone Jack  KJ-5301 Technique Characteristics：

•  Material of plastic parts: PC UL94V-0
•  Material of the FCC connectors’ 8 pin of the RJ45 jack: Phosphor bronze with golden plated 3U、6U、15U、30U、50U at option.
•  Inserting duration: 750 times.
•  Material of the IDC clips: tinned phosphor bronze pins. Fit for 22AWG/23AWG/24AWG cables.
•  Punching duration: 250 times.
•  Punching tools: tooless punching type assembles the cables with the punching cover.
•  Testing condition of transmitting capability: 100MHz
•
