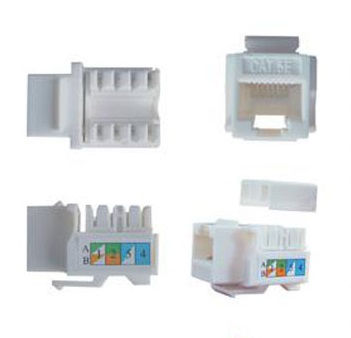

UTP Cat.5e Keystone Jack 90 Degree
Product Description:
Keystone Jack KJ-5101 Product model:
KJ-5101
Keystone Jack KJ-5101
Description:
UTP Cat.5e Keystone Jack 90 DegreeKeystone Jack KJ-5101 Main Description Of Keystone Jack KJ-5101
- Keystone Jack, Cat.5e Class E, UTP type, fit for connecting application of communication ports in working area.
- A compact & ingenious designing, with the punching sequence direction marks on the punching cover of the keystone jack, which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.
- According to the standard of ISO/IEC 11801:2002 Class D & ANSI/TIA/EIA 568-B.2-1 CAT.5e, T568A punching sequence and T568B punching sequence are both compatible.
- Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.5e cables.
- Fitting for the Cat.5e general cable distribution system. Compatible for Cat.5 systems.
Keystone Jack KJ-5101 Technique Characteristics of Keystone Jack KJ-5101
- Material of plastic parts: PC UL94V-0
- Material of the FCC connectors’ 8 pin of the RJ45 jack: Phosphor bronze with golden plated 3U, 6U, 15U, 30U, 50U at option. Inserting duration: 750 times.
- Material of the IDC clips: tinned phosphor bronze pins. Fit for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.
- Punching tools: tooless punching type assembles the cables with the punching cover.
- Testing condition of transmitting capability: 100MHz
